SINGLE AGITATOR SEALS

An agitator is a device or mechanism to put something into motion by shaking or stirring. There are several types of agitation machines, including washing machine agitators (which rotate back and forth) and magnetic agitators (which contain a magnetic bar rotating in a magnetic field).Agitators can come in many sizes and varieties, depending on the application. Mechanical Seal for Agitator. A mechanical seal is a device used to effect a seal between a rotating or reciprocating part and a stationary part on an Agitator / Mixer / Vessel. A mechanical seal works by creating a restrictive flow path, this is either an axial or radial gap.
single-agitator-seals

SINGLE AGITATOR SEALS

SINGLE AGITATOR SEALS
single-agitator-seals

Product Description:

  • Single acting
  • Reverse Balanced
  • Outside mounted
  • With Bearing
  • Independent of direction of rotation

APPLICATIONS: (Typical Industrial)
  • Corrosive application
  • General light chemicals
  • Food products
  • Pharmaceutical products
OPERATING CONDITIONS:
  • Shaft diameter: 25...150mm
  • Pressure: Vacuum: 8 bar (max)
  • Temperature: Ambient...+250??C
  • Speed : 320 rpm
FACE MATERIALS: (Combination)
  • Carbon, Silicon Carbide, Ceramic, Tungsten Carbide
METAL PARTS:
  • SS 304, SS 316, Hast - C, Alloy 20
ELASTOMERS:
  • EPDM, Viton, NBR, FFKM

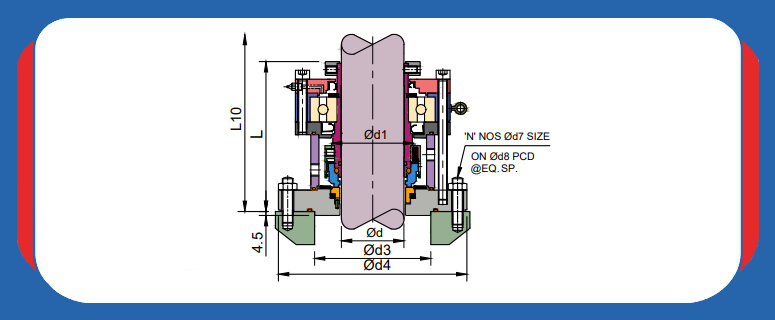

SHAFT
??d		 SEAL SIZE ??D1 ??d3 ??d4 Nx??d7 ??d8 L L10
inch mm
25.0 1.375 34.92 75.0 152.0 4 x M10 132.0 195.0 235.0
30.0 1.625 41.28 80.0 158.0 4 x M10 136.0 195.0 235.0
35.0 1.750 44.45 85.0 163.0 4 x M10 140.0 205.0 245.0
40.0 2.000 50.80 90.0 168.0 4 x M10 147.0 205.0 245.0
45.0 2.125 53.98 95.0 177.0 4 x M10 158.0 210.0 250.0
50.0 2.375 60.32 100.0 177.0 4 x M10 158.0 210.0 250.0
55.0 2.625 66.68 105.0 200.0 6 x M12 178.0 215.0 255.0
60.0 2.750 69.85 110.0 205.0 6 x M12 182.0 215.0 255.0
65.0 3.000 76.00 115.0 212.0 6 x M12 187.0 215.0 255.0
70.0 3.250 82.55 120.0 217.0 6 x M12 192.0 215.0 255.0
75.0 3.375 85.72 125.0 222.0 6 x M12 197.0 220.0 260.0
80.0 3.625 92.07 130.0 227.0 6 x M12 202.0 220.0 260.0
85.0 3.750 95.25 135.0 250.0 8 x M16 222.0 235.0 265.0
90.0 4.000 101.60 140.0 258.0 8 x M16 227.0 235.0 275.0
95.0 4.125 104.78 145.0 275.0 8 x M16 247.0 245.0 285.0
100.0 4.375 111.12 160.0 282.0 8 x M16 250.0 245.0 285.0
105.0 4.500 114.30 165.0 287.0 8 x M16 253.0 250.0 290.0
110.0 4.750 120.65 170.0 292.0 8 x M16 262.0 250.0 290.0
115.0 5.000 127.00 175.0 300.0 8 x M16 265.0 250.0 290.0
120.0 5.125 130.12 180.0 300.0 8 x M16 272.0 250.0 290.0
125.0 5.375 136.52 195.0 322.0 8 x M16 278.0 250.0 290.0
130.0 5.500 139.70 200.0 322.0 8 x M16 282.0 250.0 290.0
140.0 6.000 152.40 210.0 345.0 8 x M16 294.0 260.0 300.0
150.0 6.375 161.92 220.0 365.0 8 x M16 300.0 260.0 300.0
