ARRANGEMENT-3

The MAFFS has developed API (American Petroleum Institute) 682 seals for the oil and gas industry market. The MAFFS Type A pusher seal is available in Arrangement 1, 2 and 3. An Arrange- ment 1 seal is a single contacting wet cartridge seal with a Throttle bush. Arrangement 2 cartridge seal is the same configuration as the Arrangement 3 seal but is an un-pressurized dual seal where the barrier fluid pressure is kept lower than the seal chamber fluid pressure. The outboard seal will provide back up of hazardous fluids in case of Inboard Seal failure. MAFFS has designed, manufactured and tested to meet API 682 requirement, Type A pusher seal in Arrangement 1 and Arrangement 3 (dual pressurized cartridge seal) for the market. In an Arrangement 3 design the barrier fluid pressure is kept higher than the seal chamber pressure and is designed to handle and contain hazardous and light hydrocarbon fluids. The Inboard seal is specially designed to handle reverse pressure. Outboard Seal is same as Arrangement Seal. With many years of experience in seal design, manufacturing and testing for the industrial market, MAFFS has the experience to solve your sealing problems. Expert Engi-neering provides optimum sealing solutions to meet customer needs.
api-seals-type-a-arrangement-3

API SEALS-TYPE A - ARRANGEMENT-3

API SEALS-TYPE A - ARRANGEMENT-3
api-seals-type-a-arrangement-3

Product Description:

  • Double acting
  • Reverse Balanced
  • Inside mounted
  • Independent of direction of rotation

APPLICATIONS:
  • Petroleum refinery
  • Chemical industry
  • Oil applications
  • Petrochemicals
  • Light hydrocarbons
OPERATING RANGE:
  • Shaft diameter: d: 1.000..4.000"
  • Pressure: p: 40 bar(max)
  • Temperature: -40??C...+260??C
  • Speed : upto 4500fpm/23 m/s
FACE MATERIALS:
  • Carbon v/s Silicon Carbide,(Tungsten Carbide Optional)
METAL PARTS:
  • SS 316
ELASTOMERS:
  • FKM (Optional FFKM, BUNA, EPR)

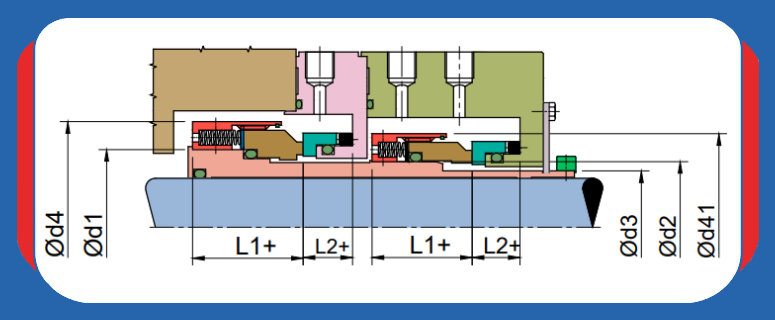

SIZE ??d1 ??d2 ??d3 ??d4 ??d41 L1+ L2+
1.000 25.40 22.20 19.05 39.7 36.5 35.0 15.5
1.125 28.58 25.40 22.20 42.8 39.7 35.0 15.5
1.250 31.75 28.58 25.4 47.6 44.45 35.0 15.5
1.375 34.92 28.58 28.58 50.8 44.45 36.5 15.5
1.500 38.10 31.75 28.58 54.0 47.70 36.5 15.5
1.625 41.28 34.92 31.75 60.3 53.98 41.0 15.5
1.750 44.45 38.10 34.92 63.5 57.15 41.0 15.5
1.875 47.62 41.28 38.10 66.7 60.32 41.0 15.5
2.000 50.80 44.45 41.28 70.0 63.50 50.0 15.5
2.125 53.98 47.62 44.45 76.2 69.85 50.0 16.5
2.250 57.15 50.80 47.62 79.4 73.02 50.0 16.5
2.375 60.32 53.98 50.80 82.6 76.20 50.0 16.5
2.500 63.50 57.15 53.98 85.7 79.38 50.0 16.5
2.625 66.68 60.32 57.15 88.9 82.55 50.0 16.5
2.750 69.85 63.50 60.32 92.1 85.72 50.0 16.5
2.875 73.02 66.68 63.50 95.3 89.00 50.0 16.5
3.000 76.20 69.85 66.68 96.8 92.10 50.0 16.5
3.125 79.38 73.02 69.85 100.0 95.30 50.0 16.5
3.250 82.55 76.20 73.02 104.8 98.50 50.0 16.5
3.375 85.72 79.38 76.20 108.0 101.6 50.0 16.5
3.500 88.90 82.55 79.38 111.1 104.8 50.0 16.5
3.625 92.08 85.72 82.55 114.3 108.0 50.0 16.5
3.750 95.25 88.90 85.72 117.5 111.1 50.0 16.5
3.875 98.42 92.08 88.90 120.7 114.3 50.0 16.5
4.000 101.60 95.25 92.08 123.8 117.5 50.0 16.5

api_seals_type_a1

API Seals Type A (Arrangement-1)
api_seals_type_a2

API Seals Type A (Arrangement-2)
