DRY RUNNING SEAL

MSDRS

Being a quality oriented organization, we are involved in providing a supreme quality range of Dry Running Seal. Dry Seals are non-contacting, dry-running mechanical face seals that consist of a mating (rotating) ring and a primary (stationary) ring. When operating, lifting geometry in the rotating ring generates a fluid-dynamic lifting force causing the stationary ring to separate and create a gap between the two rings.
dry-running-seal

DRY RUNNING SEAL

DRY RUNNING SEAL
dry-running-seal

Product Description:

  • Single acting
  • Balanced
  • Outside Mounted
  • Dry Running
  • Independent of direction of rotation


APPLICATIONS: (Typical Industrial)
  • Food Product
  • Multimills
  • Pharmaceutical Products
OPERATING CONDITIONS:
  • Shaft diameter: d : 15 ....120 mm
  • Pressure: p : Vacuum ...8 Bar(max.)
  • Temperature: t :....+120??C
  • Speed : 120 rpm
FACE MATERIALS: (Combination)
  • Silicon Carbide, Carbon
METAL PARTS:
  • SS 316, SS 304, Hast-C
SECONDARY SEAL:
  • Viton, PTFE

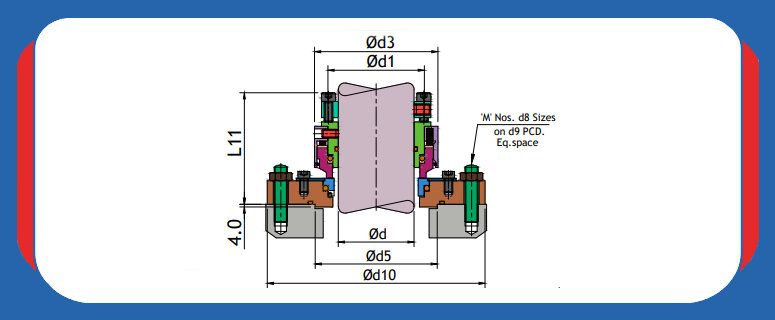

Shaft
d
??d1 ??d3 ??d5 M,d8 ??d9 ??d10 L11
0015 25.4 48.5 45.0 4 x M8 95.0 110.0 62.0
0020 28.58 52.0 50.0 4 x M8 100.0 115.0 62.0
0025 31.75 60.0 55.0 4 x M8 110.0 125.0 67.0
0028 34.92 60.0 65.0 4 x M10 120.0 140.0 67.0
0030 34.92 63.0 65.0 4 x M10 120.0 140.0 82.0
0035 41.62 74.0 65.0 4 x M10 125.0 145.0 82.0
0040 44.45 79.0 75.0 4 x M10 135.0 155.0 82.0
0045 47.62 83.0 80.0 4 x M10 135.0 155.0 82.0
0050 50.80 89.0 85.0 4 x M10 145.0 165.0 82.0
0055 53.98 92.0 90.0 4 x M10 150.0 165.0 82.0
0060 57.15 99.0 95.0 4 x M10 155.0 170.0 82.0
0065 60.33 105.0 105.0 6 x M10 165.0 185.0 82.0
0070 63.50 108.0 110.0 6 x M10 170.0 190.0 82.0
0075 66.68 113.5 115.0 6 x M10 175.0 195.0 82.0
0080 69.85 118.0 125.0 6 x M12 180.0 205.0 82.0
0085 73.03 124.0 135.0 6 x M12 190.0 215.0 82.0
0090 76.20 130.5 145.0 8 x M12 190.0 215.0 82.0
0095 79.34 134.0 150.0 8 x M12 200.0 225.0 87.0
0100 82.55 143.0 150.0 8 x M12 205.0 230.0 87.0
0105 85.73 146.0 155.0 8 x M12 215.0 240.0 87.0
0110 88.90 154.0 165.0 8 x M12 225.0 250.0 87.0
0115 92.08 162.0 170.0 8 x M12 230.0 255.0 87.0
0120 95.25 164.0 175.0 8 x M12 235.0 260.0 87.0
