PTFE BELLOW SEALS
MSPBS/MSPBR
PTFE Bellow Seal offered by us is designed for the extremely corrosive media such as concentrated acids, strong oxidizing and reducing chemicals, and salts. Owing to its ergonomic design, it can be effortlessly installed with the help of easy installation procedures. It is made of the high-grade chemical inert material, therefore, the provided seal is the perfect mechanical component for all sorts of chemically active fluids.
Product Description:
APPLICATIONS: (Typical Industrial)
OPERATING CONDITIONS:
FACE MATERIALS:
METAL PARTS:
ELASTOMERS:

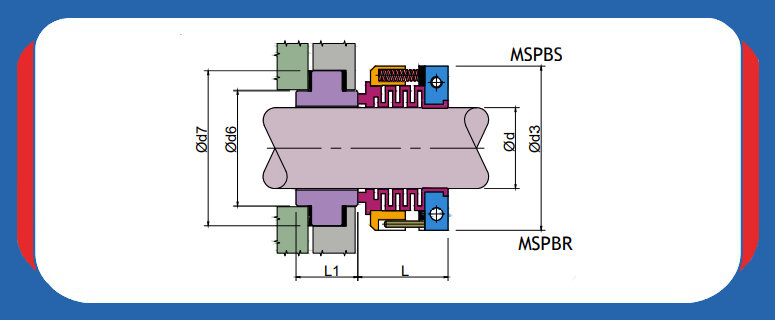

| SIZE | ??d | ??d3 | ??d6 | ??d7 | L | L1 | |
| 0.750 | 19.05 | 52.0 | 33.5 | 43.0 | 25.0 | 20.0 | |
| 0.875 | 22.22 | 55.0 | 36.5 | 46.0 | 25.0 | 20.0 | |
| 1.000 | 25.40 | 57.0 | 39.5 | 49.0 | 28.0 | 20.0 | |
| 1.125 | 25.58 | 60.0 | 43.0 | 54.0 | 30.0 | 20.0 | |
| 1.250 | 31.75 | 66.0 | 46.0 | 56.0 | 30.0 | 20.0 | |
| 1.375 | 34.92 | 70.0 | 49.0 | 63.0 | 32.0 | 22.0 | |
| 1.500 | 38.10 | 73.0 | 52.5 | 65.0 | 32.0 | 22.0 | |
| 1.625 | 41.28 | 76.0 | 60.0 | 73.0 | 38.0 | 22.0 | |
| 1.750 | 44.45 | 79.0 | 61.0 | 76.0 | 38.0 | 22.0 | |
| 1.875 | 47.62 | 85.0 | 66.5 | 79.0 | 38.0 | 22.0 | |
| 2.000 | 50.80 | 90.0 | 70.0 | 86.0 | 38.0 | 22.0 | |
| 2.125 | 53.98 | 92.0 | 75.0 | 91.0 | 45.0 | 25.0 | |
| 2.250 | 57.15 | 95.0 | 75.0 | 91.0 | 45.0 | 25.0 | |
| 2.375 | 60.32 | 98.0 | 79.5 | 95.0 | 45.0 | 25.0 | |
| 2.500 | 63.50 | 101.0 | 83.0 | 98.0 | 45.0 | 25.0 | |
| 2.625 | 66.68 | 105.0 | 85.5 | 102.0 | 45.0 | 25.0 | |
| 2.750 | 69.85 | 108.0 | 89.0 | 105.0 | 45.0 | 25.0 | |
| 2.875 | 73.02 | 111.0 | 92.0 | 108.0 | 45.0 | 25.0 | |
| 3.000 | 76.20 | 114.0 | 95.5 | 111.0 | 45.0 | 25.0 | |
| 3.125 | 79.38 | 123.0 | 98.5 | 114.0 | 45.0 | 25.0 | |
| 3.250 | 82.55 | 126.0 | 101.5 | 118.0 | 45.0 | 25.0 | |
| 3.375 | 85.72 | 130.0 | 105.0 | 121.0 | 45.0 | 25.0 | |
| 3.500 | 88.90 | 132.0 | 108.0 | 124.0 | 45.0 | 25.0 | |
| 3.625 | 92.08 | 135.0 | 111.0 | 127.0 | 45.0 | 25.0 | |
| 3.750 | 95.25 | 138.0 | 114.5 | 130.0 | 45.0 | 25.0 | |
| 3.875 | 98.42 | 140.0 | 117.5 | 133.0 | 45.0 | 25.0 | |
| 4.000 | 101.60 | 145.0 | 120.5 | 137.0 | 45.0 | 25.0 | |
