High-pressure sealing generally refers to confining fluids at pressures above 5,000 psi. Below these pressures, standard energized urethane lip seals and U-cup seals function satisfactorily without special provisions. Above them, some sort of special sealing devices are necessary.
stationary-high-pressure-seals

STATIONARY HIGH PRESSURE SEALS

STATIONARY HIGH PRESSURE SEALS
stationary-high-pressure-seals

Product Description:

  • Single seal
  • Balanced
  • Independent of direction of rotation
  • Stationary springs

APPLICATIONS: (Typical Industrial)
  • Refining Industry
  • Power Plant
  • Chemical Industry
  • Special Rotating Equipment
  • High Pressure Service
  • Low Temperature Ethylene
OPERATING CONDITIONS:
  • Shaft diameter: 20....110mm
  • Pressure: Vacuum: 6 MPa
  • Temperature: -40??C...+180??C
  • Speed: Upto 50 m/s
FACE MATERIALS: (Combination)
  • Silicon Carbide v/s Silicon Carbide
METAL PARTS:
  • SS 316, SS 304
ELASTOMERS:
  • FKM, EPDM

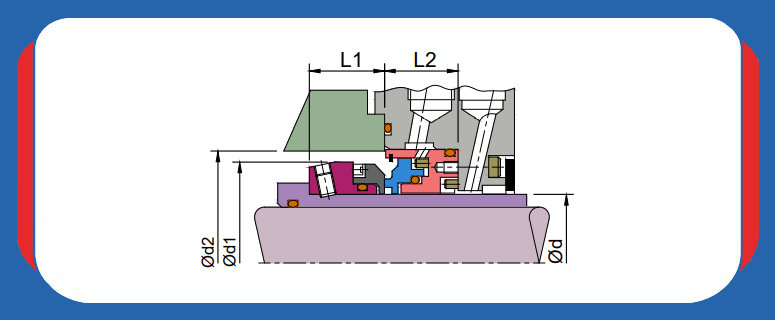

SIZE ??d ??d1 ??d2 L1 L2
020 20 40 46 27 29
025 25 46 52 27 29
030 30 51 57 27 29
035 35 56 62 27 29
040 40 63 69 31 31
045 45 68 74 31 31
050 50 76 82 33 33
055 55 82 88 33 33
060 60 90 96 33 33
065 65 93 99 33 33
070 70 99 105 33 33
075 75 104 110 33 33
080 80 111 117 35 33
085 85 117 123 35 33
090 90 120 126 35 33
095 95 129 135 35 33
100 100 132 138 35 33
105 105 137 143 35 33
110 110 144 150 35 33
