AGITATOR SEALS

MSWDB

DOUBLE AGITATOR SEALS

Double (or dual) mechanical seals are designed to ensure maximum sealing safety. These seals virtually eliminate leakage of the fluid or gas being handled in pumps or mixers. ... A properly installed double seal also allows for near complete control over the seal operating environment and fluid film over the seal faces. Mechanical Seal for Agitator. A mechanical seal is a device used to effect a seal between a rotating or reciprocating part and a stationary part on an Agitator / Mixer / Vessel. A mechanical seal works by creating a restrictive flow path, this is either an axial or radial gap.

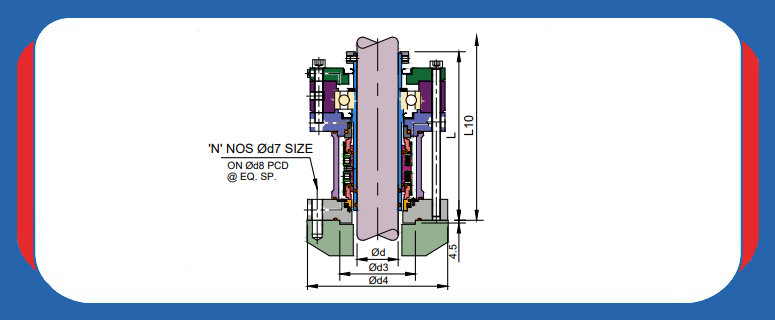

double-agitator-seals

DOUBLE AGITATOR SEALS

DOUBLE AGITATOR SEALS
double-agitator-seals

Product Description:

  • Single acting
  • Reverse Balanced
  • Outside mounted
  • With Bearing
  • Independent of direction of rotation


APPLICATIONS: (Typical Industrial)
  • Petrochemicals & its vapours
  • General chemicals & its vapours
  • Light hydrocarbons & its vapours
OPERATING CONDITIONS:
  • Shaft diameter: 25...150mm
  • Pressure: Vacuum: 35 bar (max)
  • Temperature: Ambient...+250??C
  • Speed : 600 rpm
FACE MATERIALS: (Combination)
  • Carbon, Silicon Carbide, Ceramic, Tungsten Carbide
METAL PARTS:
  • SS 304, SS 316, Hast - C, Alloy 20
ELASTOMERS:
  • EPDM, Viton, NBR, FFKM
SHAFT
??d
SEAL SIZE
??d1  inch
??d3 ??d4 Nx??d7 ??d8 L L10
25.0 1.625 75.0 152.0 4 x M10 132.0 240.0 280.0
30.0 1.875 80.0 158.0 4 x M10 136.0 240.0 280.0
35.0 2.000 85.0 163.0 4 x M10 140.0 240.0 280.0
40.0 2.250 90.0 168.0 4 x M10 147.0 250.0 290.0
45.0 2.500 95.0 177.0 4 x M10 158.0 250.0 290.0
50.0 2.625 100.0 177.0 4 x M10 158.0 250.0 290.0
55.0 2.875 105.0 200.0 6 x M12 178.0 282.0 322.0
60.0 3.125 110.0 205.0 6 x M12 182.0 282.0 322.0
65.0 3.375 115.0 212.0 6 x M12 187.0 282.0 322.0
70.0 3.500 120.0 217.0 6 x M12 192.0 288.0 328.0
75.0 3.750 125.0 222.0 6 x M12 197.0 288.0 328.0
80.0 3.875 130.0 227.0 6 x M12 202.0 288.0 328.0
85.0 4.250 135.0 250.0 8 x M16 222.0 292.0 332.0
90.0 4.500 140.0 258.0 8 x M16 227.0 308.0 348.0
95.0 4.875 145.0 275.0 8 x M16 247.0 353.0 393.0
100.0 5.000 160.0 282.0 8 x M16 250.0 353.0 393.0
105.0 5.250 165.0 287.0 8 x M16 253.0 353.0 393.0
110.0 5.375 170.0 292.0 8 x M16 262.0 358.0 393.0
115.0 5.625 175.0 300.0 8 x M16 265.0 358.0 393.0
120.0 5.750 180.0 300.0 8 x M16 272.0 358.0 393.0
125.0 6.000 195.0 322.0 8 x M16 278.0 358.0 393.0
130.0 6.250 200.0 322.0 8 x M16 282.0 425.0 465.0
140.0 6.625 210.0 345.0 8 x M16 294.0 425.0 465.0
150.0 7.000 220.0 365.0 8 x M16 300.0 425.0 465.0
