ROTARY JOINT

MSRJ

The Rotary Joint Seals, Were Designed With maximum Flexibility In Mind. We are the leading Exporter / Manufacturer / Supplier of Rotary Joint in India and Overseas.

rotary-joint

ROTARY JOINT

ROTARY JOINT

rotary-joint

STANDARD TYPE

FACE MATERIALS

Carbon / Silicon Carbide

METAL PARTS

SS 304, Aluminium, Brass

SECODARY SEAL

Elastomers

APPLICATIONS

Oil, Water, Steam, Air , Coolant

OPERATING LIMITS

Pressure : p : 10 bar
Temperature : t : 120??C
Size Range : 3/8" to 2.0"

SPEED UPTO

750 rpm : for straight threads2.0" Size
2500 rpm : for straight threads 1.0" Size
3000 rpm : for straight threads 1 1/2" & 1 1/4"" Size
3500 rpm : for straight threads 3/4" Size & below

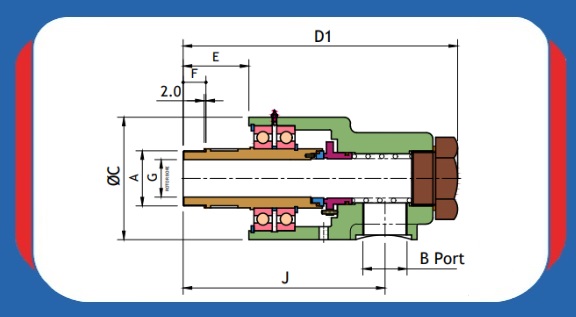

A ROTOR THREADS		B PORT		C		D1				E			F		NOM.SIZE G ROTOR BORE				J	DUALFLOW
																				D2	K			M	N	O Port		FIXED SUPPLY PIPE			ROTATING SUPPLY PIPE
																												Threads	Pipe OD.	R	Pipe size	Pipe Dia.	S	R
3/8" BSP		3/8" BSP		56		135				26			16		10.0				86.5	146	3/8" BSP			18	35	1/4" BSP		--	--	--	6.35	6.0 5.95	18	125
1/2" BSP		1/2" BSP		56		150				34			19		13.0				92	169	1/2" BSP			18	46.5	3/8" BSP		1/8" BSP	10.3	138	1/8" NB	9.42 9.40	25	145
3/4" BSP		3/4" BSP		67		157				34			19		18.0				98.5	183	3/4" BSP			26	53	1/2" BSP		1/4" BSP	13.7	143	1/4" NB	12.6 12.50	30	157
1" BSP		1" BSP		81		185				42			21.5		24.0				115	211	1" BSP			27	62	1/2" BSP		3/8" BSP	17.1	168	3/8" NB	15.8 15.75	35	185
1 1/4" BSP		1 1/4" BSP		103		222				54			27		30.0				137	252	1 1/4" BSP			35	72	3/4" BSP		1/2" BSP	21.3	201	1/2" NB	19.9 19.85	38	220
1 1/2" BSP		1 1/2" BSP		109		242				61			28.6		36.0				150.5	273	1 1/2" BSP			38	78	3/4" BSP		3/4" BSP	26.7	221	3/4" NB	25.4 25.35	45	239
1 3/4" BSP		1 3/4" BSP		115		247				63			28.6		42.0				154.5	286	1 3/4" BSP			38	87	3/4" BSP		3/4" BSP	26.7	231	3/4" NB	25.4 25.35	44	251
2" BSP		2" BSP		125		260				65			28.6		47.0				165.0	296	2" BSP			38	87	1" BSP		3/4" BSP	26.7	242	3/4" NB	25.4 25.35	44	261
