MULTI SPRING SEALS

MSMSU-M11/MSMSU-M1

Unbalanced

Multi Spring Unbalance Seals is pusher type unbalanced seals used to avoid distortion at high speeds and ensure uniform pressure on seal faces under all operating conditions and Prevents any kind of leakage. Multi Spring unbalanced seals can be easily assemble or dismantled through circlip provided and can be change to balance version by changing only the seal ring and the secondary seal. Multi Spring unbalanced Mechanical seals are compact in design suiting all types of rotating equipments, pumps, mixers,agitators and compressors.

multi-spring-seals-unbalanced

MULTI SPRING SEALS - UNBALANCED

MULTI SPRING SEALS - UNBALANCED

multi-spring-seals-unbalanced

Product Description:

Single acting Seal
Unbalanced design
Inside mounted
Independent of direction of rotation

APPLICATIONS: (Typical Industrial)

Oil Solvents
Refegrants
Petroleum Refinery
Petrochemicals
General chemicals
Light Hydrocarbon

OPERATING CONDITIONS:

Shaft diameter: 20.0.....100.0 mm
Pressure: 20 bar
Temperature: 260??C
Velocity: 23 m/s

FACE MATERIALS: (Combination)

Carbon v/s Silicon Carbide, Tungsten Carbide, Ceramic

METAL PARTS:

SS 316, SS 304, ALLOY 20

ELASTOMERS:

Viton, Nitrile, EPR, PTFE, Kalrez

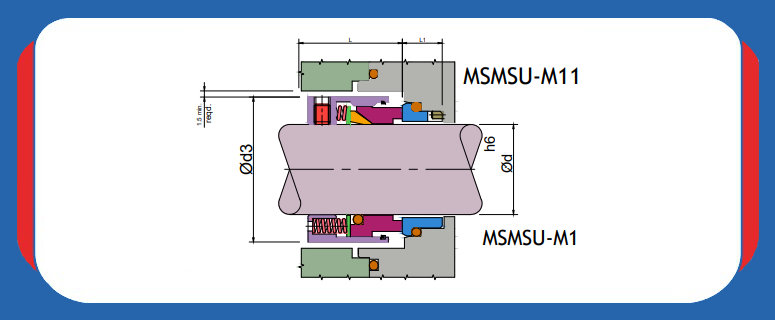

SEAL SIZE mm	??d	??d3	L	L1
020	20.0	34.5	27.5	15.0
025	25.0	39.5	31.0	15.0
028	28.0	42.5	31.0	15.0
030	30.0	44.5	31.0	15.0
032	32.0	46.5	31.0	15.0
033	33.0	47.5	31.0	15.0
035	35.0	49.5	31.0	15.0
038	38.0	54.5	32.0	16.0
040	40.0	56.5	33.0	16.0
043	43.0	59.5	33.0	16.0
045	45.0	61.5	34.0	16.0
048	48.0	64.5	34.0	16.0
050	50.0	66.5	35.0	17.0
053	53.0	69.5	35.0	17.0
055	55.0	71.5	35.0	17.0
058	58.0	78.5	40.5	18.0
060	60.0	80.5	40.5	18.0
063	63.0	83.5	40.5	18.0
065	65.0	85.5	40.5	18.0
068	68.0	88.5	40.5	18.5
070	70.0	90.5	46.0	19.0
075	75.0	95.5	46.0	19.0
080	80.0	104.5	47.0	19.0
085	85.0	109.5	47.0	19.0
090	90.0	114.5	50.0	20.5
095	95.0	119.5	50.0	20.5
100	100.0	124.5	50.0	20.5
