RUBBER BELLOW SEALS
MSR60
We are offering an huge array of high quality Rubber Bellow Seals. All seal components that come in contact with pumped fluid are chemically inert materials. It will work in dual direction. It can be used as a double mechanical seal by back to back arrangement. The seals are recommended with pure medium without solid contamination.
Product Description:
APPLICATIONS: (Typical Industrial)
OPERATING CONDITIONS:
FACE MATERIALS:
METAL PARTS:
ELASTOMERS:

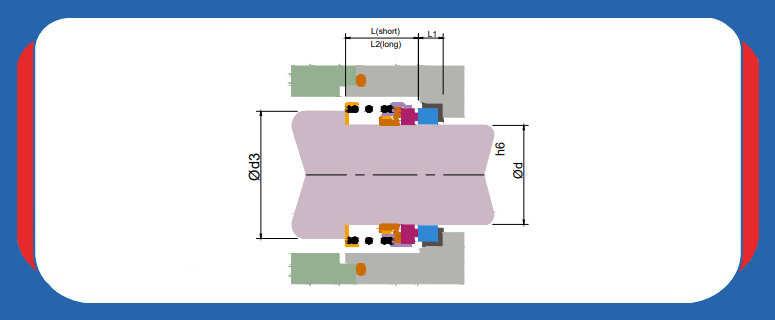

| SIZE | ??d | ??d3 | L | L2 | L1 | ||||
| 0010 | 10.0 | 20.0 | 25.0 | 44.0 | 6.6 | ||||
| 0012 | 12.0 | 21.7 | 25.0 | 44.0 | 6.6 | ||||
| 0013 | 13.0 | 23.8 | 25.0 | 44.0 | 6.6 | ||||
| 0014 | 14.0 | 24.5 | 25.0 | 44.0 | 6.6 | ||||
| 0016 | 16.0 | 26.6 | 25.0 | 44.0 | 6.6 | ||||
| 0018 | 18.0 | 30.3 | 25.0 | 44.0 | 7.5 | ||||
| 0020 | 20.0 | 31.8 | 25.0 | 44.0 | 7.5 | ||||
| 0022 | 22.0 | 33.5 | 25.0 | 44.0 | 7.5 | ||||
| 0024 | 24.0 | 38.3 | 25.0 | 44.0 | 7.5 | ||||
| 0025 | 25.0 | 38.3 | 25.0 | 44.0 | 7.5 | ||||
| 0028 | 28.0 | 42.2 | 33.0 | 60.0 | 7.5 | ||||
| 0030 | 30.0 | 43.9 | 33.0 | 60.0 | 7.5 | ||||
| 0032 | 32.0 | 45.7 | 33.0 | 60.0 | 7.5 | ||||
| 0033 | 33.0 | 49.1 | 33.0 | 60.0 | 7.5 | ||||
| 0035 | 35.0 | 49.1 | 33.0 | 60.0 | 7.5 | ||||
| 0038 | 38.0 | 52.4 | 33.0 | 60.0 | 9.0 | ||||
| 0040 | 40.0 | 55.7 | 33.0 | 60.0 | 9.0 | ||||
| 0042 | 42.0 | 61.2 | 40.0 | 70.0 | 9.0 | ||||
| 0043 | 43.0 | 61.2 | 40.0 | 70.0 | 9.0 | ||||
| 0045 | 45.0 | 61.2 | 40.0 | 70.0 | 9.0 | ||||
| 0048 | 48.0 | 64.3 | 40.0 | 70.0 | 9.0 | ||||
| 0050 | 50.0 | 67.3 | 41.0 | 71.0 | 9.0 | ||||
| 0053 | 53.0 | 70.6 | 41.0 | 71.0 | 11.0 | ||||
| 0055 | 55.0 | 71.6 | 41.0 | 71.0 | 11.0 | ||||
| 0058 | 58.0 | 78.4 | 41.0 | 71.0 | 11.0 | ||||
| 0060 | 60.0 | 78.4 | 41.0 | 71.0 | 11.0 | ||||
| 0063 | 63.0 | 81.1 | 41.0 | 71.0 | 11.0 | ||||
| 0065 | 65.0 | 84.3 | 49.0 | 71.0 | 11.0 | ||||
| 0068 | 68.0 | 89.6 | 49.0 | 71.0 | 11.3 | ||||
| 0070 | 70.0 | 89.6 | 49.0 | 71.0 | 11.3 | ||||
| 0075 | 75.0 | 96.8 | 52.0 | 73.0 | 11.3 | ||||
