CONICAL SPRING SEALS
MSCS-M3
Designed and manufactured to perfection, we are one of the most excellent and leading traders and exporters of Conical Spring Seal. These seals are used in water pumps, sewage pumps, submerged pumps and chemical pumps. Our offered range of spring seals is checked by our workers for dimensional accuracy, long functional life and weather resistance. Available at nominal prices in the market; Conical Spring Seal is manufactured as per the set norms and standards of the industry.
Product Description:
APPLICATIONS: (Typical Industrial)
OPERATING CONDITIONS:
FACE MATERIALS:
METAL PARTS:
ELASTOMERS:

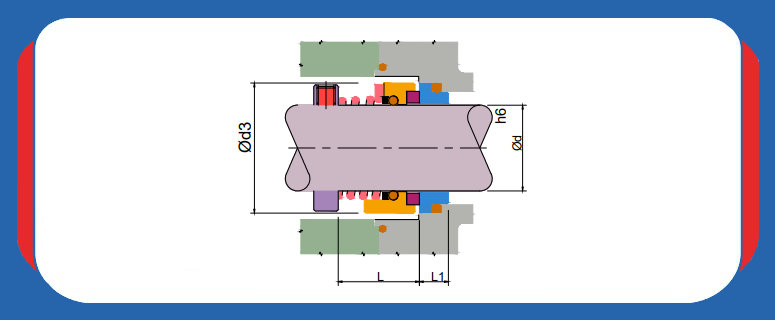

| SIZE | ??d | ??d3 | L | L1 |
| 0010 | 10.0 | 20.0 | 17.0 | 7.5 |
| 0012 | 12.0 | 22.0 | 17.5 | 7.5 |
| 0014 | 14.0 | 24.0 | 17.5 | 7.5 |
| 0015 | 15.0 | 25.0 | 19.5 | - |
| 0016 | 16.0 | 26.0 | 20.0 | 7.5 |
| 0018 | 18.0 | 31.5 | 22.0 | 8.5 |
| 0020 | 20.0 | 34.5 | 24.0 | 8.5 |
| 0022 | 22.0 | 36.5 | 25.0 | 8.5 |
| 0024 | 24.0 | 38.5 | 27.0 | 8.5 |
| 0025 | 25.0 | 39.5 | 27.0 | 8.5 |
| 0028 | 28.0 | 42.5 | 27.0 | 8.5 |
| 0030 | 30.0 | 44.5 | 28.0 | 8.5 |
| 0033 | 33.0 | 47.5 | 28.0 | 8.5 |
| 0035 | 35.0 | 49.5 | 33.0 | 8.5 |
| 0038 | 38.0 | 54.5 | 35.0 | 10.0 |
| 0040 | 40.0 | 56.5 | 37.5 | 10.0 |
| 0043 | 43.0 | 59.5 | 37.5 | 10.0 |
| 0045 | 45.0 | 61.5 | 39.0 | 10.0 |
| 0048 | 48.0 | 64.5 | 45.0 | 10.0 |
| 0050 | 50.0 | 66.5 | 46.0 | 10.5 |
| 0053 | 53.0 | 69.5 | 48.0 | 12.0 |
| 0055 | 55.0 | 71.5 | 49.0 | 12.0 |
| 0058 | 58.0 | 78.5 | 52.0 | 12.0 |
| 0060 | 60.0 | 79.5 | 55.0 | 12.0 |
| 0063 | 63.0 | 84.0 | 55.0 | 12.0 |
| 0065 | 65.0 | 86.0 | 55.0 | 12.0 |
| 0068 | 68.0 | 89.0 | 55.0 | 12.5 |
| 0070 | 70.0 | 91.0 | 56.0 | 12.5 |
| 0075 | 75.0 | 99.0 | 56.0 | 12.5 |
| 0080 | 80.0 | 104.0 | 60.0 | 13.0 |
