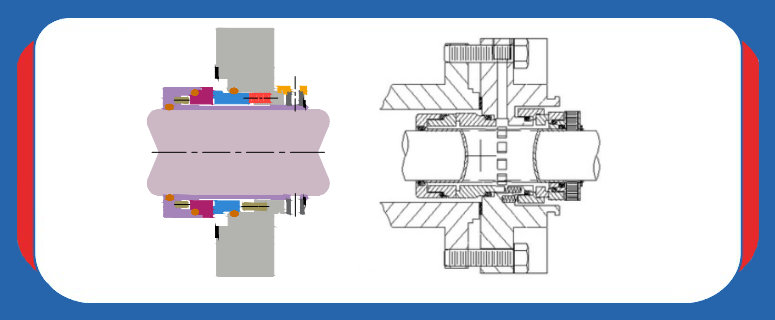

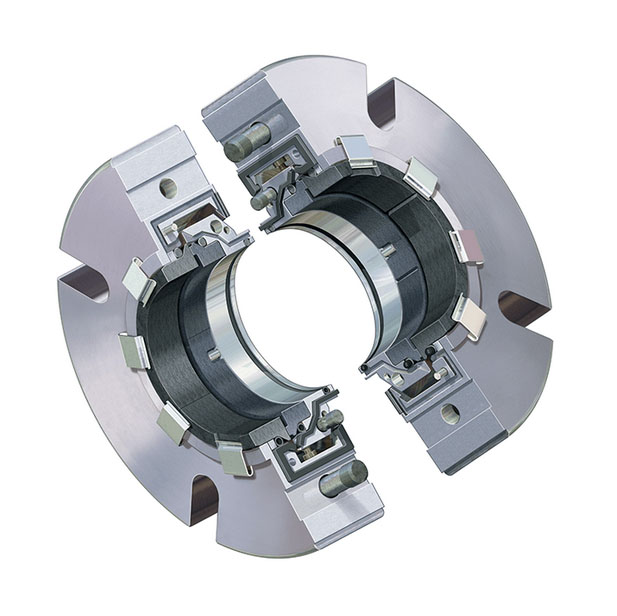

SPLIT SEALS

MSCRT

Split mechanical seals are widely used as heavy and large equipment in many industries such as pulp & paper, oil & refinery, marine, chemical & petrochemicals. These are best available sealing solutions to rotating equipment. Split mechanical seals are subjected to abrasion, wear, corrosion, vibration, thermal, pressure,etc.
split-seals

SPLIT SEALS

SPLIT SEALS
split-seals

Product Description:

  • Split components
  • Balanced
  • Easy to install


APPLICATIONS:
  • Utility Pumps
  • Transfer Pumps
  • Agitator & Vessels
OPERATING CONDITIONS:
  • Shaft diameter: 25 100mm
  • Pressure: Pressure: Vacuum: 12 bar (max)
  • Temperature: -40??C...+260??C
  • Speed : 10 m/s
FACE MATERIALS:
  • Silicon Carbide/ Silicon Carbide
METAL PARTS:
  • SS 304, SS 316, Hast - C
ELASTOMERS:
  • EPDM, Viton, FFKM
??d ??d2 ??d3 ??d3 L L1
25 43.0 44.0 51.5 24.6 42.4
28 46.0 47.0 52.0 24.6 42.4
30 78.0 49.0 56.0 24.6 42.4
32 49.8 51.0 57.0 24.6 42.4
33 49.8 51.0 57.0 24.6 42.4
35 53.0 54.0 61.5 24.6 42.4
38 56.0 57.0 66.0 24.6 42.4
40 58.0 59.0 68.0 24.6 42.4
42 60.5 61.5 69.5 24.6 42.4
43 60.5 61.5 70.5 24.6 42.4
45 62.5 64.0 73.0 24.6 42.4
48 65.6 67.0 75.0 24.6 42.4
50 68.0 69.0 78.0 24.6 42.4
53 72.0 73.0 87.0 24.6 42.4
55 73.0 74.0 83.0 24.6 42.4
60 78.0 79.0 91.0 24.6 42.4
65 84.8 85.7 98.5 24.6 42.4
70 93.0 95.0 108.0 24.6 42.4
75 100.0 101.6 118.0 26.6 57.4
80 106.4 108.0 124.0 26.6 57.4
85 109.5 111.1 128.0 26.6 57.4
90 115.9 117.5 135.0 26.6 57.4
95 119.1 120.7 138.0 26.6 57.4
100 125.4 127.0 144.0 26.6 57.4
