STATIONARY METAL BELLOW
MS14
High quality stationary metal bellow mechanical seal. stationary metal bellow mechanical seal for high or low temperature applications. Metal bellows keep the seal balanced, which enables it to work under pressures reaching 20 bar or at high revolutions, even going up to 6000 rpm without suffering premature wear.
Product Description:
APPLICATIONS: (Typical Industrial)
OPERATING CONDITIONS:
FACE MATERIALS:
METAL PARTS:
BELLOWS:

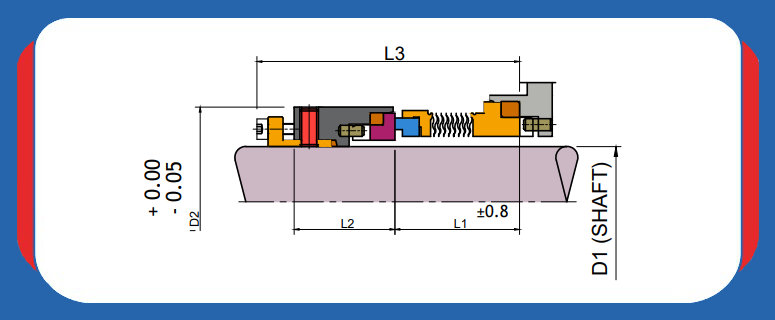

| ??d1 | ??d2 | L1 | L2 | L3 |
| 22.23 | 46.5 | 28.85 | 42.85 | 87.6 |
| 25.4 | 49.5 | 28.85 | 42.85 | 87.6 |
| 28.58 | 52.5 | 28.85 | 42.85 | 87.6 |
| 31.75 | 55.50 | 28.85 | 42.85 | 87.6 |
| 34.93 | 59.0 | 28.85 | 42.85 | 87.6 |
| 38.1 | 65.5 | 30.2 | 42.85 | 88.9 |
| 41.28 | 65.5 | 31.0 | 42.85 | 89.7 |
| 44.45 | 68.5 | 31.8 | 42.85 | 90.5 |
| 47.63 | 71.5 | 31.8 | 42.85 | 90.5 |
| 50.8 | 75.0 | 32.5 | 42.85 | 91.3 |
| 53.98 | 81.5 | 33.4 | 46.0 | 95.3 |
| 57.15 | 84.5 | 34.18 | 46.0 | 99.3 |
| 60.33 | 87.5 | 34.98 | 46.0 | 100.0 |
| 63.5 | 90.5 | 35.76 | 46.0 | 100.9 |
| 66.68 | 94.0 | 36.6 | 47.63 | 103.3 |
| 69.85 | 100.5 | 40.8 | 48.41 | 108.3 |
| 73.03 | 103.5 | 40.8 | 48.41 | 108.3 |
| 76.2 | 106.5 | 40.8 | 48.41 | 108.3 |
| 79.38 | 109.5 | 40.8 | 48.41 | 108.3 |
| 82.55 | 113.0 | 40.8 | 48.41 | 108.3 |
| 85.73 | 116.0 | 40.8 | 48.41 | 108.3 |
| 88.9 | 119.0 | 41.86 | 50.8 | 111.7 |
| 92.08 | 122.5 | 41.86 | 50.8 | 111.7 |
| 95.25 | 125.5 | 41.86 | 50.8 | 111.7 |
| 98.43 | 128.5 | 41.86 | 50.8 | 111.7 |
