API SEALS-TYPE C

MSSMBG

ARRANGEMENT-1

There are three Types of seals: Type A, Type B and Type C. Type C seal is a balanced, internally-mounted, cartridge design, metal bellows seal. Secondary sealing elements are flexible graphite. Secondary sealing elements are elastomeric O-rings. The seals are also classified in to Arrangement 1, 2 and 3. Arrangement 1 seals having one seal per cartridge assembly. Arrangement 2 seals having two seals per cartridge assembly, utilizing the externally supplied buffer fluid at a pressure less than the seal chamber pressure. Arrangement 3 seals having two seals per cartridge assembly, utilizing the externally supplied barrier fluid at a pressure higher than the seal chamber pressure.
api-seals-type-c-arrangement-1

API SEALS-TYPE C - ARRANGEMENT-1

API SEALS-TYPE C - ARRANGEMENT-1
api-seals-type-c-arrangement-1

Product Description:

  • Single acting
  • Balanced
  • Inside mounted
  • Independent of direction of rotation


APPLICATIONS:
  • Refinery Applications for low as well high temperature
  • Oil and Gas Industry
  • Petrochemical Industry
  • Chemical Industry
  • Power Plant
OPERATING RANGE:
  • Shaft diameter : 20.0 ...110.0
  • Pressure: upto 2MPa/20 bar (g) max.
  • Temperature: -40??C....+400??C
  • Speed : upto 9800fpm/50 m/
FACE MATERIALS:
  • Carbon v/s Silicon Carbide
METAL PARTS:
  • Inconnel, SS 316
ELASTOMERS:
  • Flexible Graphite

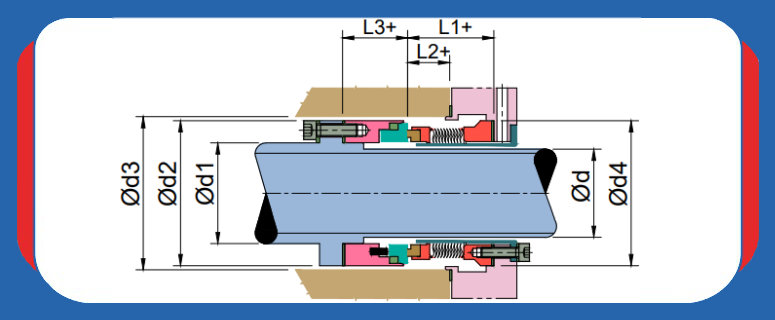

??d ??d1 ??d2 ??d3 ??d4 L1+ L2+ L3+
20.0 25.0 47.0 51.0 48.0 38.0 17.0 31.0
24.0 29.0 50.0 54.0 51.0 38.0 17.0 31.0
28.0 32.0 53.0 57.0 54.0 38.0 17.0 31.0
31.0 36.0 57.0 61.0 58.0 38.0 17.0 31.0
33.0 39.0 60.0 65.0 61.0 41.0 20.0 31.0
35.0 42.0 63.0 68.0 64.0 41.0 20.0 31.0
39.0 45.0 68.0 71.0 67.0 41.0 20.0 31.0
42.0 48.0 69.0 74.0 70.0 41.0 20.0 31.0
45.0 51.0 72.0 77.0 73.0 41.0 20.0 31.0
47.0 54.0 75.0 81.0 77.0 43.0 22.0 31.0
50.0 58.0 79.0 84.0 80.0 43.0 22.0 31.0
53.0 61.0 82.0 87.0 83.0 43.0 22.0 31.0
55.0 64.0 85.0 90.0 86.0 51.0 30.0 31.0
59.0 67.0 89.0 93.0 89.0 51.0 30.0 31.0
63.0 71.0 92.0 97.0 93.0 51.0 30.0 31.0
64.0 74.0 96.0 100.0 96.0 55.0 34.0 31.0
67.0 77.0 99.0 103.0 99.0 55.0 34.0 31.0
70.0 81.0 102.0 106.0 102.0 55.0 34.0 31.0
73.0 84.0 105.0 109.0 105.0 55.0 34.0 31.0
76.0 87.0 109.0 112.0 108.0 55.0 34.0 31.0
79.0 90.0 113.0 117.0 112.0 58.0 37.0 31.0
82.0 93.0 116.0 121.0 115.0 58.0 37.0 31.0
85.0 96.0 119.0 123.0 118.0 58.0 37.0 31.0
88.0 99.0 122.0 126.0 121.0 58.0 37.0 31.0
91.0 103.0 125.0 129.0 124.0 58.0 37.0 31.0
100.0 111.0 138.0 143.0 135.0 60.0 41.0 41.0
110.0 116.0 147.0 153.0 146.0 60.0 41.0 41.0
