Balanced

Multi Spring Balanced Seals are pusher type balance multiple spring mechanical seals generally used when high pressure sealing is required.Balanced Spring seals are compact in design suiting all types of rotating equipments - pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve. Multi Spring Balanced Mechanical Seals can be provided with single, double, or tandem arrangement with external seals support systems and devices.The bellow faces are interchangeable and replaceable.
multi-spring-seals-balanced

MULTI SPRING SEALS-BALANCED

MULTI SPRING SEALS-BALANCED
multi-spring-seals-balanced

Product Description:

  • Single acting Seal
  • Balanced design
  • Inside mounted
  • Independent of direction of rotation
  • For stepped shaft

APPLICATIONS: (Typical Industrial)
  • Refinery Applications
  • Oil and Gas Industry
  • Petrochemical Industry
  • Chemical Industry
  • Power Plant
OPERATING CONDITIONS:
  • Shaft diameter: 20.0 .....100.0 mm
  • Pressure: 40 bar
  • Temperature: 260??C
  • Speed: Up to 23 m/s
FACE MATERIALS: (Combination)
  • Carbon v/s Silicon Carbide, Tungsten, Carbide, Ceramic
METAL PARTS:
  • SS 316, SS 304, ALLOY 20
ELASTOMERS:
  • Viton, Nitrile, EPR, PTFE, Kalrez

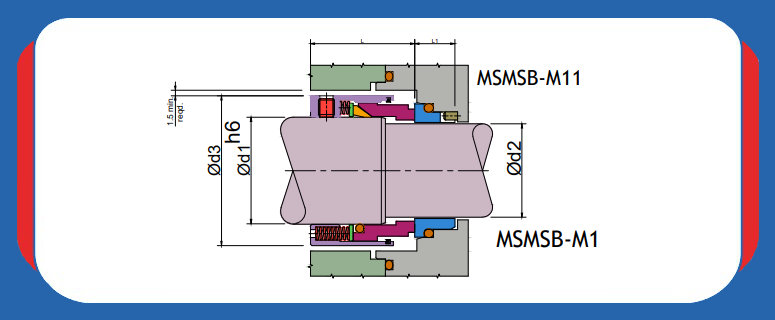

SEAL SIZE
mm		 ??d1 ??d2 ??d3 L L1
24.0 24.0 20.0 38.5 32.0 15.0
28.0 28.0 24.0 42.5 35.0 15.0
30.0 30.0 25.0 44.5 35.0 15.0
33.0 33.0 28.0 47.5 38.0 15.0
35.0 35.0 30.0 49.5 38.5 15.0
38.0 38.0 32.0 54.5 38.5 15.0
38.0 38.0 33.0 54.5 38.5 15.0
40.0 40.0 35.0 56.5 38.5 15.0
43.0 43.0 38.0 59.5 40.0 16.0
45.0 45.0 40.0 61.5 40.0 16.0
48.0 48.0 43.0 64.5 40.0 16.0
50.0 50.0 45.0 66.5 40.0 16.0
53.0 53.0 48.0 69.5 40.0 16.0
55.0 55.0 50.0 71.5 44.5 17.0
58.0 58.0 53.0 78.5 44.5 17.0
60.0 60.0 55.0 80.5 44.5 17.0
63.0 63.0 58.0 83.5 49.5 18.0
65.0 65.0 60.0 85.5 49.5 18.0
68.0 68.0 63.0 88.5 49.5 18.0
70.0 70.0 65.0 90.5 49.5 18.0
75.0 75.0 70.0 95.5 56.5 19.0
80.0 80.0 75.0 104.5 56.5 19.0
85.0 85.0 80.0 109.5 55.5 19.0
90.0 90.0 85.0 114.5 60.5 19.0
95.0 95.0 90.0 119.5 60.5 20.5
100.0 100.0 95.0 124.5 60.5 20.5
105.0 105.0 100.0 129.5 60.5 20.5
